Styrofoam cutters Stobra ECO-Series!

Styrofoam cutters Stobra

Powerful cutting possibilities . . .

Styrofoam cutters Stobra ECO is a professional device designed for precise, fast and waste-free cutting of styrofoam materials. The hot wire styrofoam cutter Stobra ECO enables any machining of polystyrene blocks in all possible variants (straight cut, angular cut, rabbet, wedges, etc.). In addition, cutter is equipped with several linear and angular scales that simplify accurate and fast length or thickness measurements of cutting material, as well as setting parameters of angle cutting. Styrofoam cutters is factory equipped also with a kit of two supports supporting the cutting material. Long support has a scale and a stop that simplify making repeatable cuts.

Styrofoam cutter Stobra ECO
Styrofoam cutter Stobra ECO!

The styrofoam cutters Stobra ECO is a quality foam cutting device and available only as a classical cutting table. Only Foot Switch and Carrying Case is available as an accessory to cutter.

DESCRIPTION

POWER SUPPLY UNIT

Power supply unit equipped with transformer, protection fuse (standard 5 x 20) signal diode and a splash-proof, profesional  XLR socket, using for connecting unit to cutter and to the Foot Switch. In model ES01 the power supply unit are installed on cutters base plate and connected to bow. In other models ES02 and ES04 power supply unit is separately from device.

Styrofoam cutter Stobra ECO -Power supply unit

SCALE, SUPPORTS, LIMIT STOP RIDERS AND LOCKING SYSTEM

Thanks to scales and limit stop riders, time intensive marking of insulating slabs can be dispensed with. The new end stop is fitted with a stick, which could be used either as handhold. High quality locking system of styrofoam cutter Storbra ECO is made to use bow as a handle for transportation. All this standard functions make Styrofoam cutter Stobra ECO best in class with powerful possibilities in cutting polystyrene (EPS, XPS) or similar materials.

Styrofoam cutter Stobra ECO - Locking system
Styrofoam cutter Stobra ECO - Limit stop riders
Styrofoam cutter Stobra ECO - Bow stoppers

The purpose of supports is to support cutting material, as well as providing stability during thinning the material. There are available two models of support: long support scale (ca. 55cm long) and short support without scale (ca. 35 cm long). The supports can be mounted interchangeably in any hole of the base plate. They can be use simultaneously and independently.

Styrofoam cutter Stobra ECO - Supports

ACCESSORIES

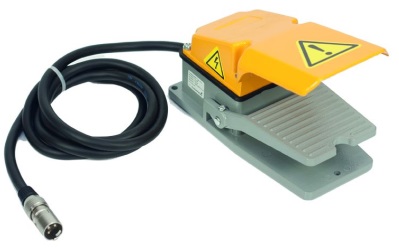

FOOT SWITCH

Foot switch is a component designed for all types of styrofoam cutters of STOBRA ECO. Foot Switch allows you to control the styrofoam cutter without the use of hands and increases both comfort and safety. It is particularly useful, for example, when cutting large polystyrene (EPS, XPS) foam elements, thinning polystyrene blocks or cutting grooves.

Styrofoam cutter Stobra ECO

Carrying Transport case

Carrying Transport case protects the styrofoam cutters Stobra ECO from damage during transport and allows for easy storage. Carrying case have a handle on it side for comfortable transportation. The case is made of wood and plywood. Inside, there are handles that allow attaching additional accessories like footswitch and supports.

Styrofoam cutter Stobra ECO - Carrying case

CUTTING WIRE

Styrofoam cutter Stobra ECO - Cutting wire

For Styrofoam cutters Stobra ECO we use Nichrome – NiCr wire. We offer ready-made versions of the cutting wire with two lugs on the ends for easy and quick installation on the cutter. Cutting Wire for Stobra ECO! You can buy by the piece (1 pc) or in large amounts (1kit = 10pc). The cutting wire are always in stock and can be sent to the client immediately after the order confirmation.

TECHNICAL SPECIFICATION

 Model

ES01

ES02

ES04

Cutting length:

1040 mm

1300 mm

1300 mm

Cutting depth:

250 mm

250 mm

500 mm

Transformer:

230/24V/160VA

230/28V/200VA

230/28V/200VA

Miter:

adjustable 45-90°

Weight:

14 kg

16 kg

17 kg

Frame:

Aluminum profile plate

Bow:

Powder-coated steel, fully welded, with industrial ball bearing guides

Art. #:

HWS-ECO1

HWS-ECO2

HWS-ECO4

Extra Wire:

HWS-ECO10

HWS-ECO240

HWS-ECO240

Foot switch:

Not available

HWS-ECO101

Status:

In Stock

In Stock

Availability: 14 days



SEND REQUEST

WORLDWIDE DELIVERY

We sell and ship products all over the world!

Our insulation cutting systems are sold in Europe and in many countries throughout the world from Finland, Sweden – to Turkey and Canada.

Delivery times vary widely from country to country, they also depend on how effective your local postal services are. However, we have made an estimation of 2-5 working days for Europe countries: Latvia, Lithuania, Finland, Sweden, Norway, and 5-16 working days for other Europe countries (incl. Russia, Belarus, Ukraine, Kazakhstan). The estimated delivery time to major cities outside Europe (Asia, North America, South America, Australia) starts from 12 working days.

Shipping costs are determined by the order’s size, weight, shipping method and delivery address. We calculate shipping price for each order individually. Pleasecontact us for more information!

Our shipping partners are DPD, Omniva, Itella SmartPost, DHL, UPS.

“Your specialist for insulation cutting systems!”
